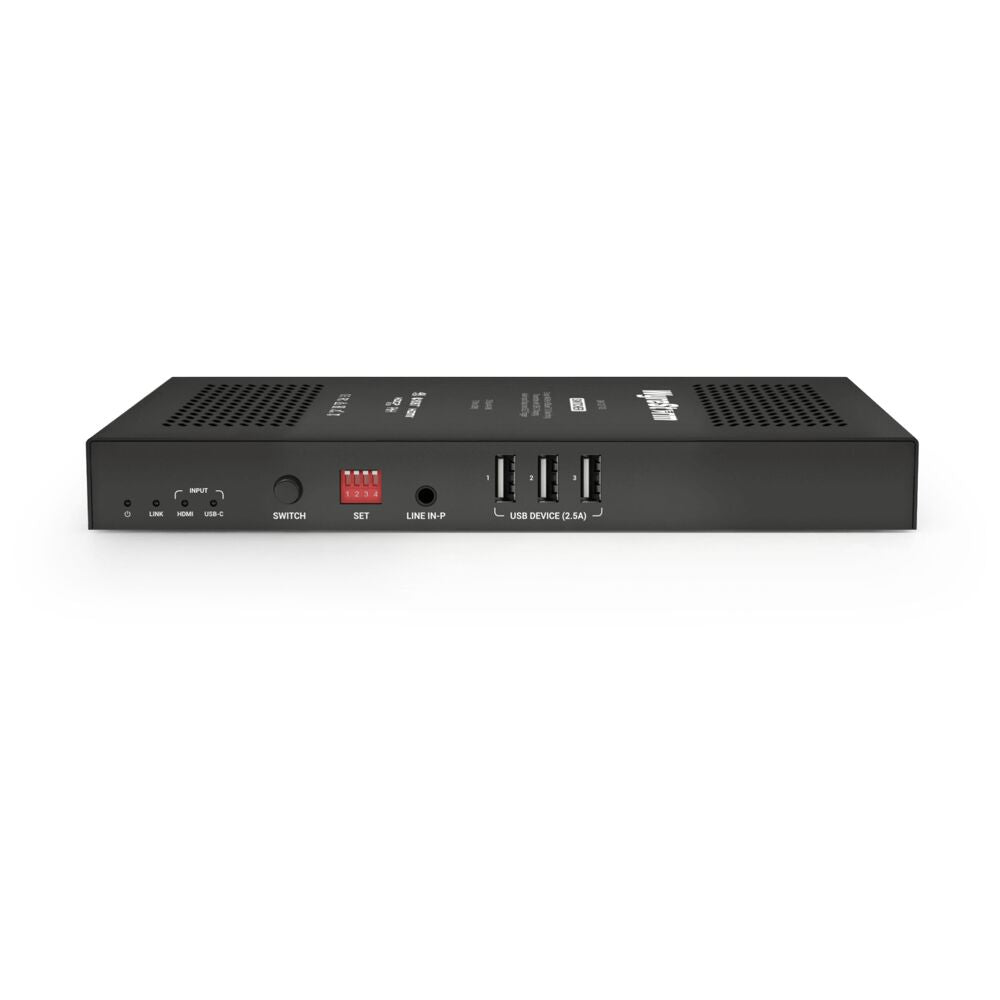

4K60Hz HDBaseT 3.0 Transmitter, HDMI & USB-C input, PoH, USB2.0, RS232 passthrough

2 inputs and powerful HDBaseT 3.0 transmission result is this powerful switching transmitter, perfect for higher education classroom/lecture hall and corporate environments. Automatic or manual switching of HDMI or USB-C and CEC power triggering via HDBaseT means a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) alongside 3 additional USB device ports locally available for a total of 6 devices that can simultaneously used in conjunction with each input. Rounding out it’s long feature list, the SW-120-TX3 boasts 60 watts of charging over the connected USB-C device.

Key Features

• HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable up to an astonishing 100m/328ft
• It’s not just an HDBaseT switcher; it’s a versatile powerhouse. Beyond seamless switching, it sends power trigger commands and delivers high-speed charging of up to 60 watts for devices like laptops and tablets.
• The SW-120-TX3 offers both source audio de-embed from HDMI and a separate independent audio pass-through lane to send separate audio down to the RX simultaneously.
• Featuring a unique API, the SW-120-TX3 intelligently recognizes whether a RS-232 command is to be passed down to the receiver or whether it is to control it from a controller such as the SYN-KEY10.
• Uncompressed content up to 4K@60Hz 4:4:4 8bit

Product Details

• Part Number: SW-120-TX3
• Brand: WyreStorm
• Category: Twisted Pair Extension
