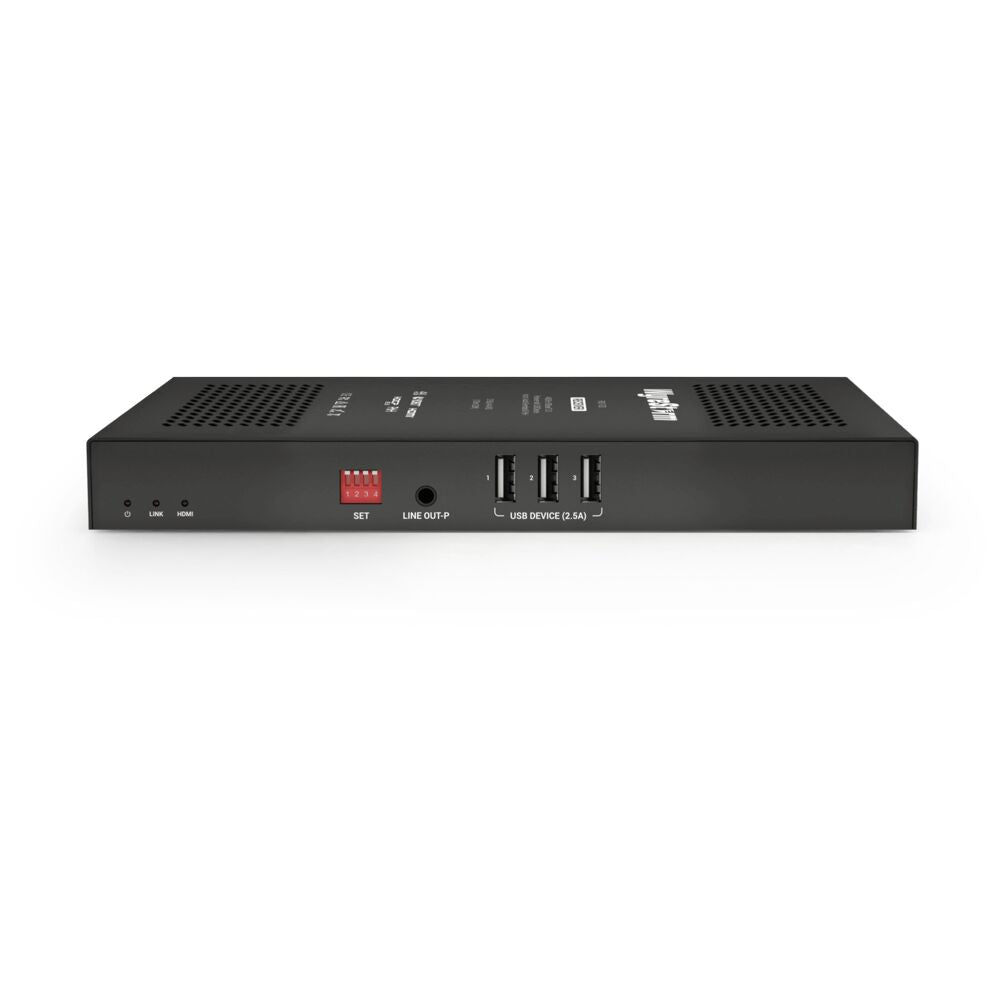

4K60Hz HDBaseT 3.0 Receiver, PoH, USB2.0, CEC, RS232 passthrough, audio De-embed

Introducing the RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m/328ft at 4K@60Hz via Cat.6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0’s capability of 190Mbps. This heightened capacity supports high-speed connections to 4K webcams, whiteboards, and data drives. The RX3-100 seamlessly pairs with any of WyreStorm’s HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-Ux for a powerful switching extender solution!

Key Features

• HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable.
• USB 2.0 PASSTHROUGH
• The RX3-100 offers both audio de-embed from the source HDMI and independent audio pass-through lane from line-in audio from the TX simultaneously.
• The RX-100 boasts bidirectional PoH, which can power or be powered by a transmitters such as the SW-120-TX3-Ux or SW-120-TX3, while also passing bidirectional RS-232 control to either the display or back to the head-end
• Uncompressed content up to 4K@60Hz 4:4:4 8bit

Product Details

• Part Number: RX3-100
• Brand: WyreStorm
• Country of Origin: CN
• Category: Twisted Pair Extension
