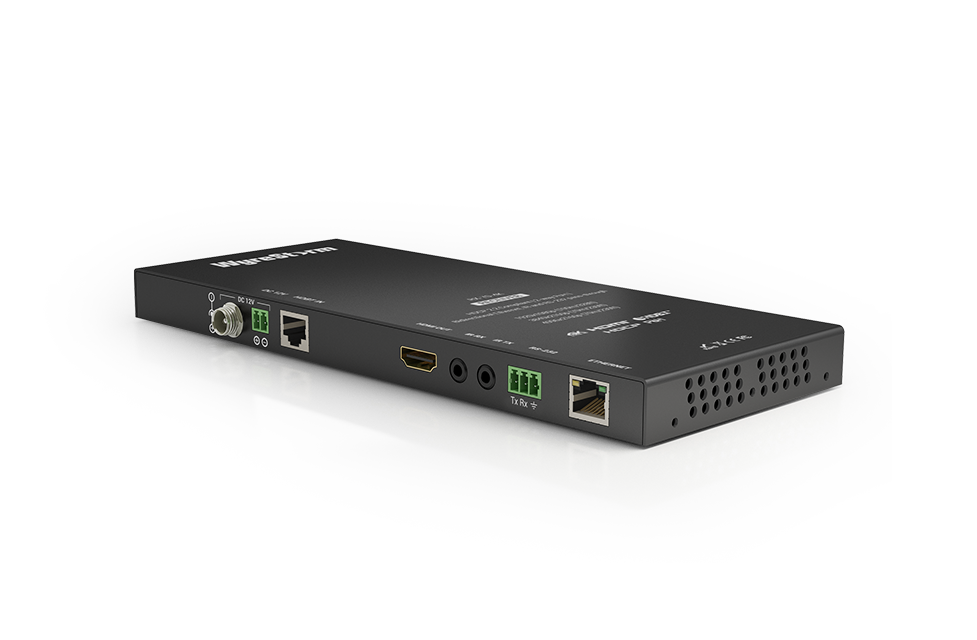

4K HDBaseT Low Profile Receiver with 2-Way IR
About this product
The perfect complement to a WyreStorm HDBaseT™ matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.
Key Features
- CLASS A HDBASET Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.
- CONTROL OPTIONS Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.
- DISCREET INSTALLATION Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.
- 2-WAY POH The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.
Product Details
- Part Number: RX-70-4K
- Brand: WyreStorm
- Country of Origin: CN-China
- Category: IP Distribution
Quick reference
Manufacturer: WyreStorm
SKU: RX-70-4K
UPC: 814303012987
Category: Signal Distribution
Weight: 1.0 lb
