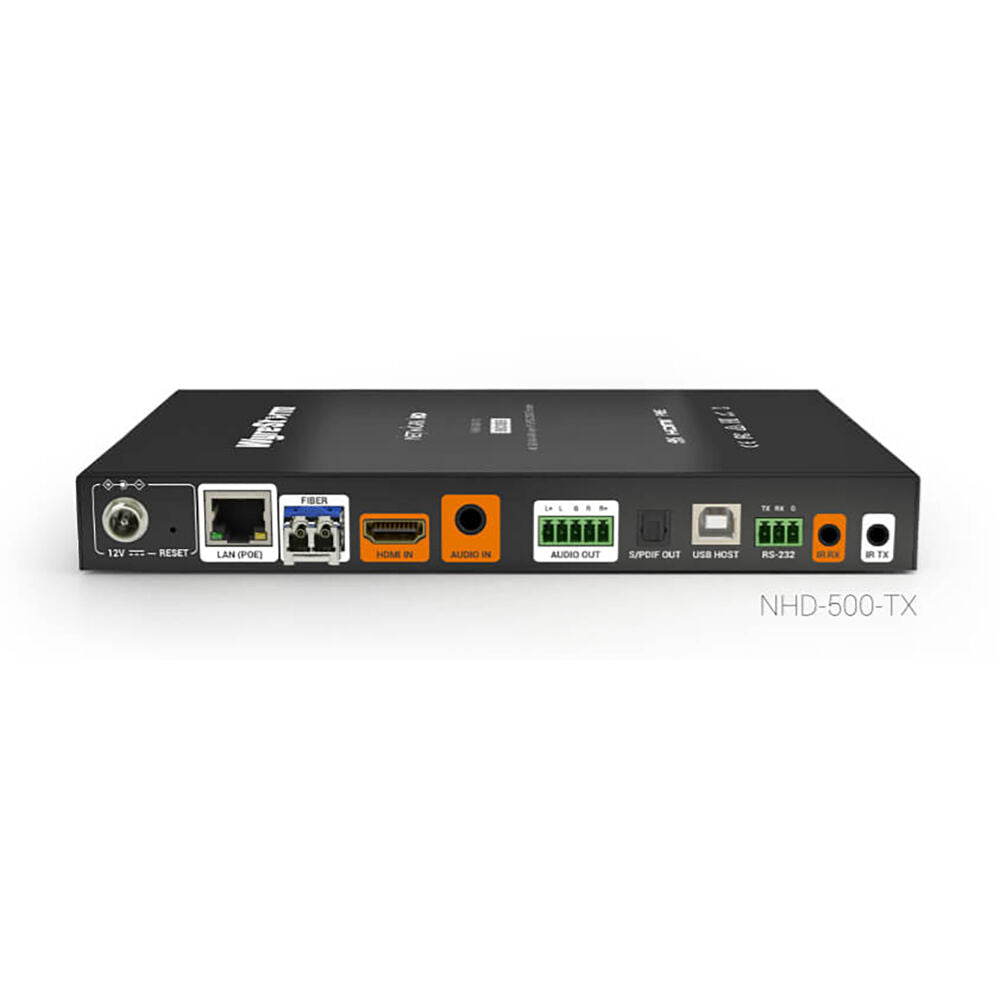

4K60Hz Encoder 1GbE Dolby Vision and HDR

The NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing engine allows audio, video, USB and control signals to be discretely sent to any endpoint. Create captivating video walls up to 16×16 in size and control them with the tap of a button in the amazing NetworkHD Touch control app.

PERFORMANCE & VERSATILITY

Introducing the all-new NetworkHD 500 series. The 500 series take what you know and love about the 400 series and improves in almost every way! Full HDMI 2.0 encoding/decoding, faster switching speeds, higher quality preview streams and fiber connectivity are just some of the major advances that have been made.

HDMI 2.0 ENCODING

Capable of encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz over a 1GbE network.

ETHERNET OR FIBER

Equipped with both Ethernet and Fiber outputs, the 500 series offers flexibility for any installation. Ethernet can support transmissions up to 100m (328ft) and fiber is capable of a stunning 550m (1800ft) using OM3 MMF.

AUDIO RETURN CHANNEL

Audio Return Channel (ARC) via HDMI allows audio from a display to transmit over the network to a 500 series encoder for connection to a compatible AVR. ARC supports up to Dolby Digital Plus and DTS 5.1 formats. Have an older display? Take advantage of the Toslink passthrough to transmit audio in the same way.

VIDEO WALLS

Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect. The 500 series also allow you to create mosaic style walls with rotated screens!

SECURITY

Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 500 series in encrypted end-to-end.

ULTRA LOW-LATENCY

Less than a single frame a latency (16ms) when in passthrough mode allows content to be distributed without any perceivable delay.

NETWORKHD TOUCH

The 500s are fully compatible with the NetworkHD Touch control app. Effortlessly control matrix and video wall switching with preview streams of each encoder.

Key Features

• HDMI 2.0 encoding/decoding up to 4K60 4:4:4 8bit with Dolby Vision/HDR compatibility
• Ethernet or Fiber connections (550m w/ OM3 MMF or 10km with SMF)
• USB connectivity for extension and routing of USB peripheral devices
• Ultra-low latency transmissions of less than a single video frame
• NHD-500-RX decoder capable of 16x16 video wall processing, including mosaic

Product Details

• Part Number: NHD-500-TX
• Brand: WyreStorm
• Country of Origin: CN-China
• Category: IP Distribution
• Spec Sheet: Download PDF
