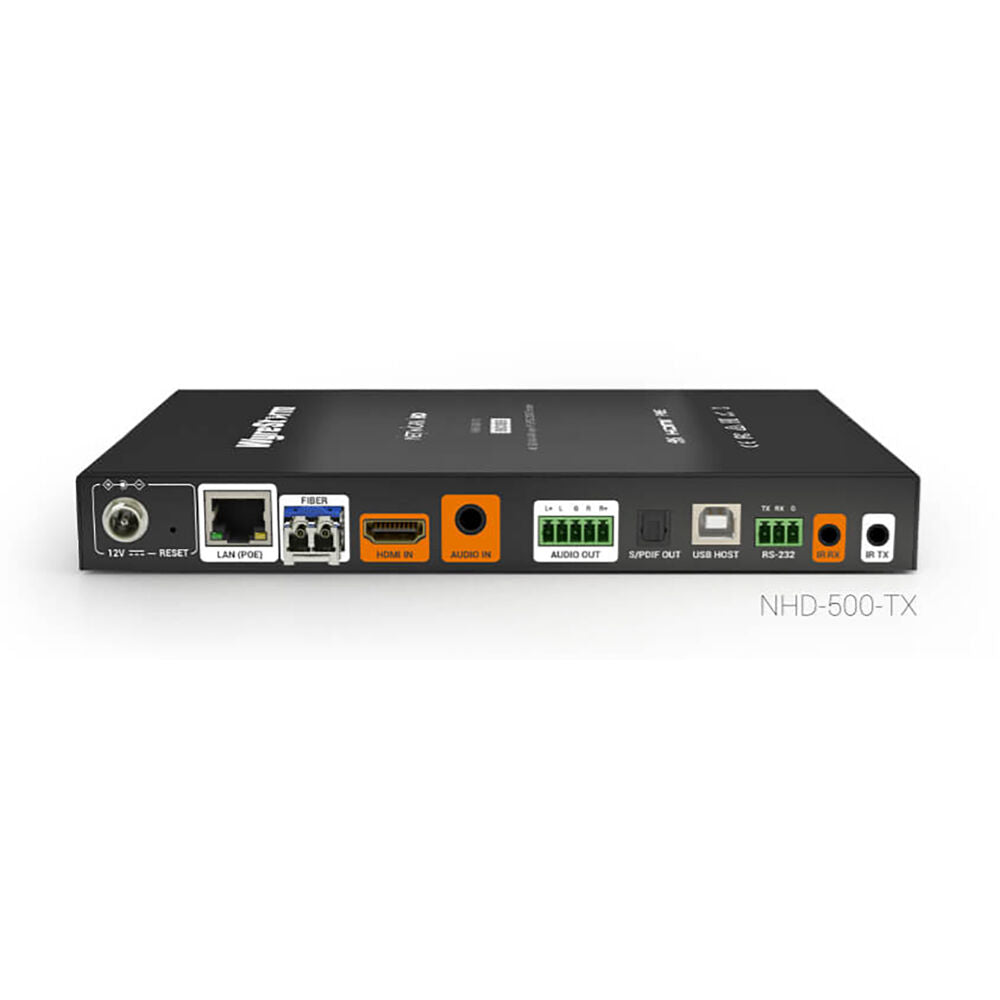

Network HD 500 series Lite 4K60 4:4:4 JPEG2000 Encoder & Decoder

The NHD-500-E encoder and decoder enhance the NetworkHD 500 series by providing an economical 4K60 solution. The “E” variations remove many of the I/O found on the standard encoder and decoder and retain only the core functionalities that suite most applications. This helps avoid an over-specified hardware solution while still offering interoperability between all other 500 series components, enabling system designs to be better tailored to exact needs.

Key Features

• Full HDMI 2.0 encoding/decoding, faster switching speeds, higher quality preview streams and fiber connectivity are just some of the major advances that have been made.
• Capable of encoding & decoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz. All over a 1GbE network with ultra-low latency.
• Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is pixel perfect. The 500 series also allow you to create mosaic style walls with rotated screens!
• Equipped with the latest security protocols including SSH, TLS and HTTPS. Data and communications from the 500 series in encrypted end-to-end.

Product Details

• Part Number: NHD-500-E-TX
• Brand: WyreStorm
• Country of Origin: CN
• Category: IP Distribution
