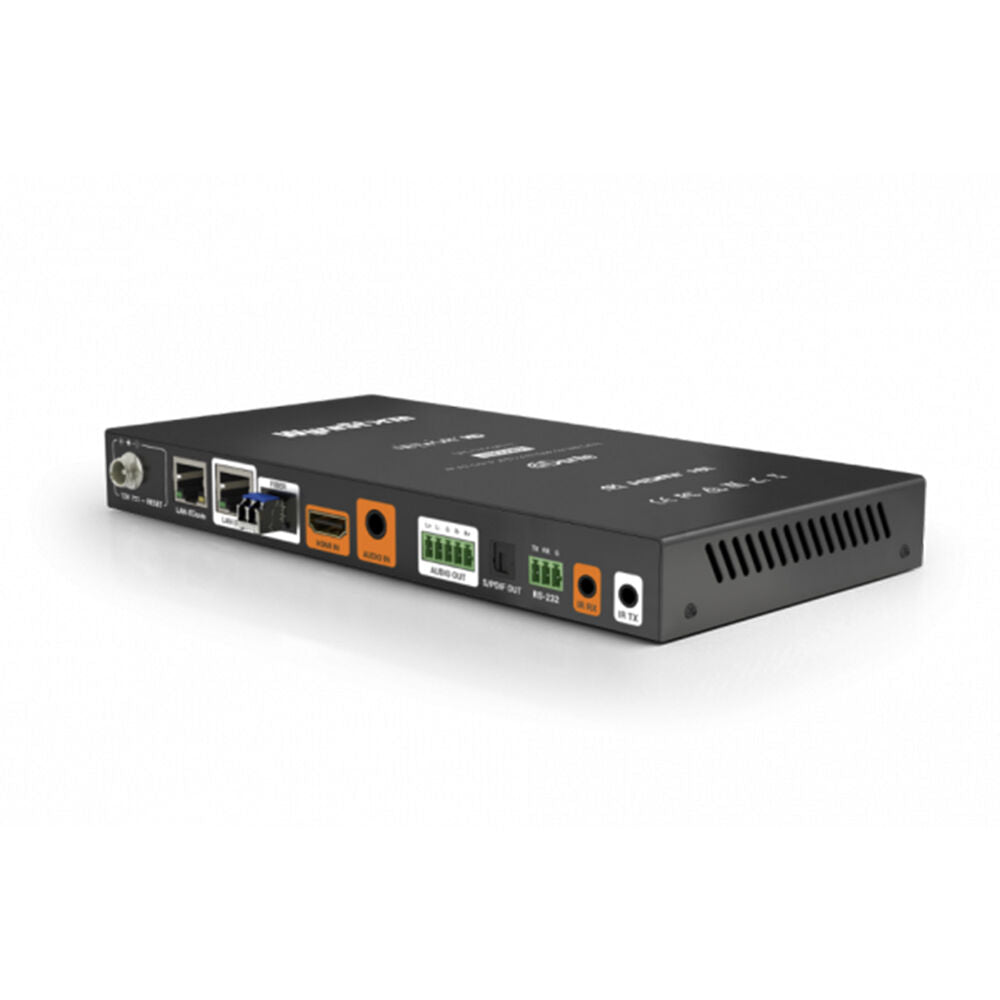

WYRESTORM NetworkHD 500 Series 4K60 4 4 4 JPEG2000 Encoder

The NHD-500-DNT-TX is part of the powerful NetworkHD 500 series family of products. Capable of encoding up to 4K60 including Dolby Vision, HDR10, and HLG content. The 500 series comes loaded with several advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. Unique to this encoder is an integrated 2-channel Dante & AES67 audio output.

Key Features

• The integrated 2 channel Dante & AES67 output allows audio to be sent over the network to compatible Dante & AES67 enabled DSPs, amplifiers, mixers and more. Audio can be transmitted via Dante from either the encoder’s HDMI input or a separate analog input
• Dante audio and NetworkHD A/V can be integrated into the same network or separated via a dedicated Dante-only port.
• Capable of encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz over a 1GbE network.
• Equipped with both Ethernet and Fiber outputs, the 500 series offers flexibility for any installation. Ethernet can support transmissions up to 100m (328ft) and fiber is capable of a stunning 550m (1800ft) using OM3 MMF.
• Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 500 series in encrypted end-to-end.

Product Details

• Part Number: NHD-500-DNT-TX
• Brand: WyreStorm
• Country of Origin: CN
• Category: IP Distribution
• Spec Sheet: Download PDF
